Powder Coating Overhead Conveyor System

Powder Coating Overhead Conveyor System

Overhead conveyor system is the most commonly used solution for wet paint or powder coating finishing. The type of conveyor selected for your operation will depend on the weight, size and even the shape of the items being transported. We we can design whole conveyor system specially for your needs

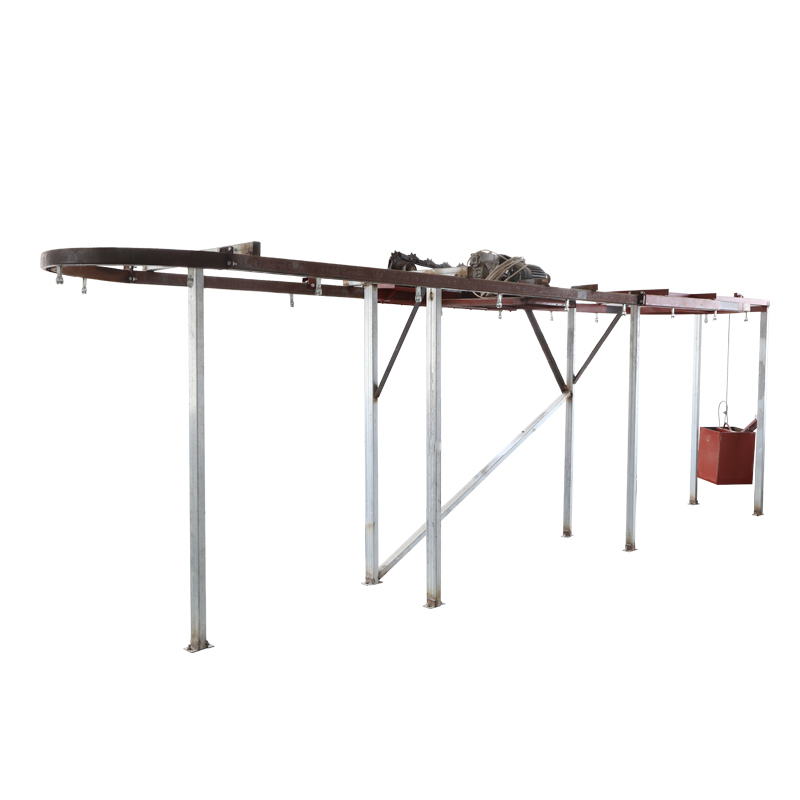

Light Weight Overhead Conveyor System

Heavy-duty I Beam Conveyor System

Light Weight Overhead Conveyor System

• Single point loading capacity less than 100kgs

• Applied to long-distance transportion in continuous space with low noise, simple installation and maintenance

• Can endure the the harsh chemicals used during the washing, degreasing, phosphating, etc. Able to withstand high temperature during curing process.

Conveyor System

Straight Track

Curved Track

Drive Unit

Tension

QXG Series Conveyor Chain

Oil Lubrication Cup

X type, Y type Hangers

Rotating Hangers

X348 X458 X678 I Beam Heavy-duty Conveyor System

• Apply to Heavy-duty overhead conveyor of powder coating or painting line, loading capacity from 100-500kgs.

• Rivetless chain are drop-forged from high strength carbon steel to minimize the chain stretch and maximize service life

I Beam System

Chain

Trolley
